Racerstar 3660 Brushless Motor 60A ESC Waterproof w/ M0.6 Metal Gears for Wltoys 104001 104002 RC Car Vehicles Parts

Racerstar 3660 Brushless Motor 60A ESC Waterproof w/ M0.6 Metal Gears for Wltoys 104001 104002 RC Car Vehicles Parts

$67.09

Description:
Item Brand:Racerstar
Item Number:3660 2600KV(5T) or 3300KV(4T) 60A
Item Name:RC car motor esc set
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 60mm,diameter 36mm,shaft diameter is 3.175mm,length of extended shaft is 17mm
The Size of the ESC:51.5*38.5*38.5mm
The Weight of the Motor/ESC:About 195g/76g
Recommendating Program Card:product id:1057127
Fit For:Wltoys 104001 104002 1/10 rc car vehicles models

The Specification of the Motor:
KV:2600KV/3300KV
Watts:1200
Max Voltage:<19V/<15V
Max Amps:63A/80A
Rotor Poles:4
IO:1.5A/2.3A
Resistance:0.0146/0.0095
Max RPM:50000
Connector:4.0mm gold

The Specification of the ESC:
Cont.Current:60A
Burst Current:360A
Motor Type:Sensorless Brushless Motor

Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH
1.On-road:3660-size or smaller motor with the KV<4300
2.Off-Road/Monster/:3660-size or smaller motor with the KV<3300
For 3S Lipo or 9 cells NiMH
1.On-road:3660-size or smaller motor with the KV<3300
2.Off-road/Monster:3660-size or smaller motor with KV<2600
Suitable Car:1/10 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.8V3A(switch mode)
For the esc manual,please click here

Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion

Before Installing on Wltoys 104001:
1.You must change full proportional controllerm,such as dumborc X6,flysky transmitter
2.You can upgrade higher 7.4v 2600mAh or more capacity battery,product id:1862898(optional choice,not must need)

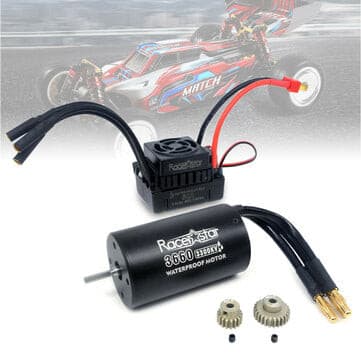

Package included:

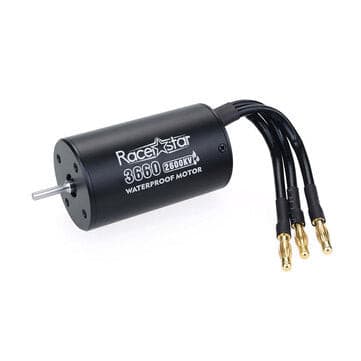

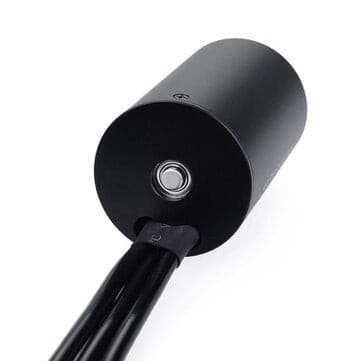

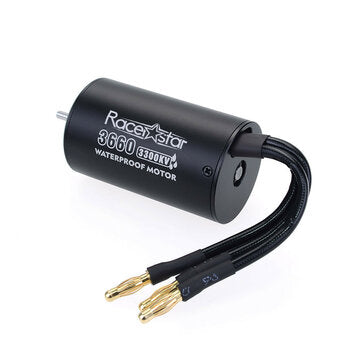

1X 3660 Brushless Motor

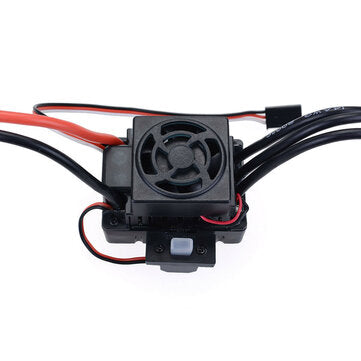

1X 60A ESC

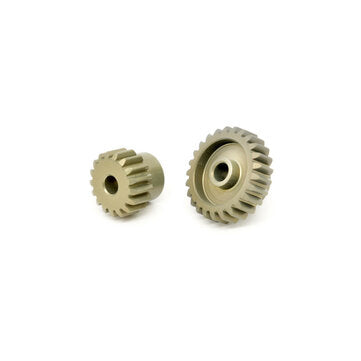

2X Motor Gears(17T 15T,M0.6)
1X Manual
