Racerstar 3660 2600KV/3300KV/3800KV Brushless Motor 60A ESC 9KG Servo w/ M0.6 Metal Gears for Wltoys 104002 104001 RC Car Parts

Racerstar 3660 2600KV/3300KV/3800KV Brushless Motor 60A ESC 9KG Servo w/ M0.6 Metal Gears for Wltoys 104002 104001 RC Car Parts

$76.99

Description:
Item Brand:Racerstar
Item Number:3660 2600KV or 3300KV or 3800KV 60A
Item Name:RC car motor esc set
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 60mm,diameter 36mm,shaft diameter is 3.175mm,length of extended shaft is 17mm
The Size of the ESC:51.5*38.5*38.5mm
The Weight of the Motor/ESC:About 219g/76g
Recommendating Program Card:product id:1057127
Fit For:Wltoys 104001 104002 1/10 rc car vehicles models

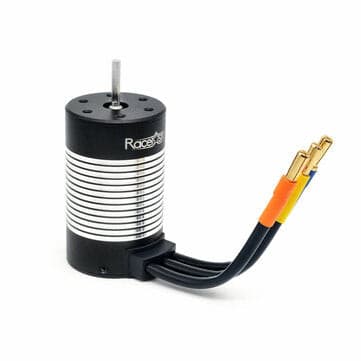

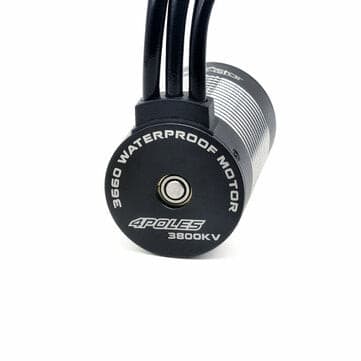

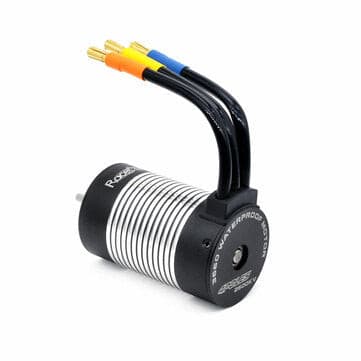

The Specification of the Motor:
KV:2600KV/3300KV/3800KV
Watts:1200
Max Voltage:<19V/<15V/<13V(2600KV/3300KV/38000KV)
Max Amps:63A/80A/92A(2600KV/3300KV/38000KV)
Rotor Poles:4
IO:1.5A/2.3A/2.8A(2600KV/3300KV/38000KV)
Resistance:0.0146/0.0095/0.0083(2600KV/3300KV/38000KV)
Max RPM:50000
Connector:4.0mm gold

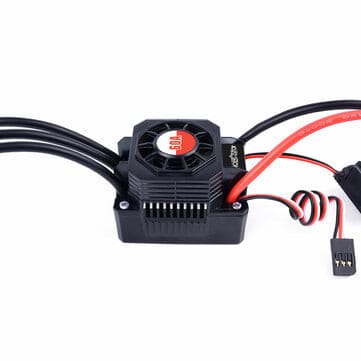

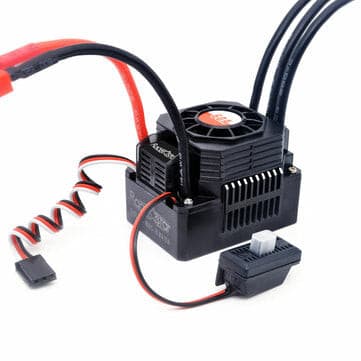

The Specification of the ESC:
Cont.Current:60A
Burst Current:360A
Motor Type:Sensorless Brushless Motor

Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH
1.On-road:3660-size or smaller motor with the KV<6000
2.Off-Road/Monster/:3660-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH
1.On-road:3660-size or smaller motor with the KV<4000
2.Off-road/Monster:3660-size or smaller motor with KV<3000
Suitable Car:1/10 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.8V3A(switch mode)
For the esc manual,please click here

The Specification of the 9KG Servo:
Locked-Rotor Torque: 10kgf.cm at 4.8V; 14kgf.cm at 6V
No-load Speed: 0.21s/60° at 4.8V; 0.19s/60° at 6V
Product Weight: 55g (1.94oz)
Product Size: 36.6*20.2*40.7mm (1.44*0.79*1.60 inch)
Operating Voltage: 4.8V~6VDC
Working Frequency: 1520us/333Hz
Motor Type: DC motor
Gear Type: metal gear
Bearing Type: 2BB
If using a voltage regulator, please maintain the voltage at 4.8V~6VDC

Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion

Before Installing on Wltoys 104001:
1.You must change full proportional controllerm,such as dumborc X6,flysky transmitter
2.You can upgrade higher 7.4v 2600mAh or more capacity battery,product id:1862898(optional choice,not must need)

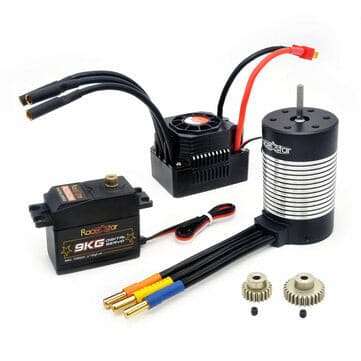

Package included:
1X 3660 Brushless Motor
1X 60A ESC

1X 9KG Metal Servo

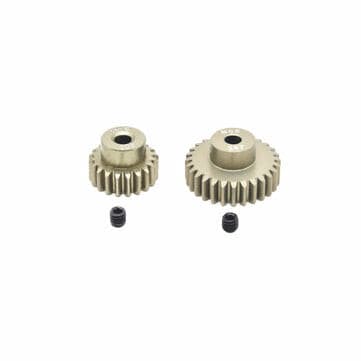

2X Metal Gears(20T 28T,M0.6)
1X Manual
