RunCam Link/Air Unit Phoenix Kit HD Digital 1280*720@60fps 1/2 157° 4km 32ms Low Lantency DVR Recording for DJI FPV Unit Caddx Vista

RunCam Link/Air Unit Phoenix Kit HD Digital 1280*720@60fps 1/2 157° 4km 32ms Low Lantency DVR Recording for DJI FPV Unit Caddx Vista

$54.99 $69.00


Notice: The latest camera has covered by silver shell, the covered and uncovered version are sent randomly.


Defference Between LINK & AIR UNIT version:

1. Air Unit comes with 2 antenna for better transmission

2. Air Unit support DVR recording, Link kit doesn't.



Features

8 CHANNELS for DRONES

The HDL FPV Transmission system and the FPV Air Unit are equipped with eight frequency channels, which allow up to eight drones to

fly simultaneously. Each operator has an exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience.


Embedded Remote Controller Receiver

Users can wirelessly connect their DJI FPV Air Unit to the DJI FPV Remote Controller without having to purchase additional receivers. This reduces flight preparation time significantly.

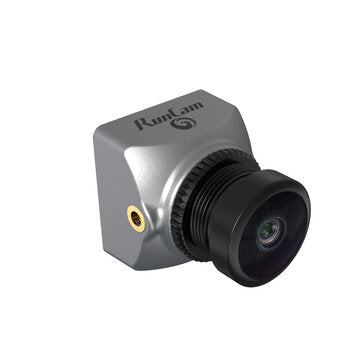

RUNCAM Phoenix HD Camera

Use 1/2 inch, up to 10650 mV/Lux-sec ultra-high sensitivity sensor, excellent night vision effect.


At 1280 x 720 60fps resolution

the delay is as low as 32ms, which is suitable for freestyle flying.


Air Unit Supports 720P 60fps DVR Recording



Parameters

Model

RunCam LINK Phoenix HD Kit

Frequency

5.725-5.850 GHz

Max. Distance

FCC/SRRC: <4 km & CE: <0.7 km

Power

7.4-26.4 V@ 4-9W

Dimensions

29×29×13 mm

Net Weight

19.5 g



Model

RunCam Phoenix HD

Image Sensor

1/2”

Resolution

1280*720@60fps

LENS

FOV D:157° H:133° V:72°

Shutter

Rolling Shutter

Coaxial Cable

120 mm

Dimensions

L19mm*W19mm*H23.5mm

Net Weight

7.5g



User Manual

RunCam Link Phoenix HD Kit Manual


Air Unit Phoenix HD Kit Manual



Packing list: Optional

 Notice: The latest camera has covered by silver shell, the covered and uncovered version are sent randomly.


1 x Camera

or

1 x Camera

1 x VTX

1 x Antenna

1 x Cable Wire
