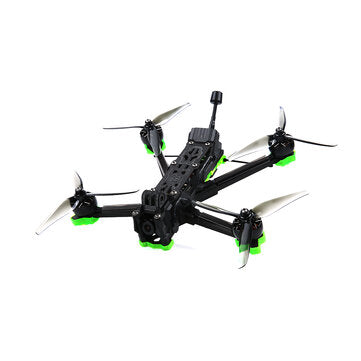

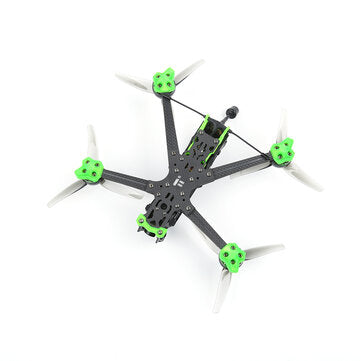

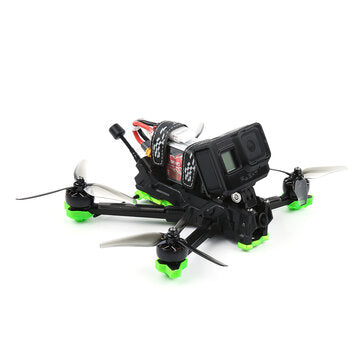

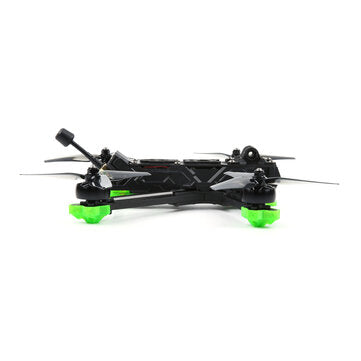

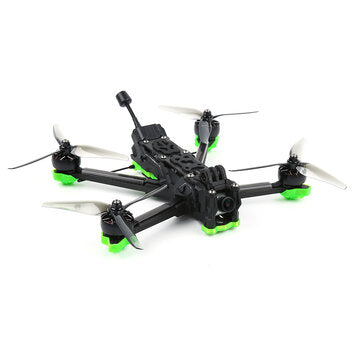

iFlight Nazgul5 Evoque F5 F5D DeadCat HD 4S / 6S 5 Inch FPV Racing Drone BNF BLITZ Mini F7 FC 55A ESC CADDX Nebula Pro Vista
Changelog:
August 2021: The color of 915 antenna mount changed from green to black, change the foam inner packaging to blister material.
August 2021: Before two antennas changed to one.
October 2021: Before SucceX-E mini F7 Stack(F7 45AESC) changed to BLITZ MINI (F7 BLITZ E55 4-in-1 ESC)
November 2021: TPU color is random, you may receive yellow, pink, blue, green, or blackish green.
PRODUCT DESCRIPTION
The Secret Of Ultimate Performance Is Passion
That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.
Lightweight Side Panels - Keep Your Rig Clean
Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well... These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.
Secured Integrated XT60 Battery Plug - As Safe, It Can Be
Dangling battery plugs will ALWAYS find a way in your props, there's always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.
High-Performance Electronics - F7 55A Power Stack
Our BLITZ Mini F7 Flight Controller with modern USB type-C plug, 16MB BlackBox, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new BLITZ Mini E55 55A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed
Capacitor right next to your battery leads.
XING2 Performance Motors - The Best Motors Just Got Better
7075 aluminum bell, 5mm titanium alloy shaft, NSK durable bearings, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency. Not to mention the typical XING damping ring between the bell and bearing to increase durability and smoothen out your flights.
Illumination - Let It Be Green
360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night's race.
Specifications:
Brand: iFlight
Item Name: Nazgul5 Evoque F5D HD 4S / 6 FPV Racing Drone
Total Dimensions: 136*190mm (body dimension)
Bottom to top distance: 28mm
Arm Thickness: 6mm
Bottom plate thickness: 3mm
Top plate thickness: 3mm
Upper(middle) plate thickness: 3mm
XING2 2207 motors (4S/6S)
Nazgul F5 propellers

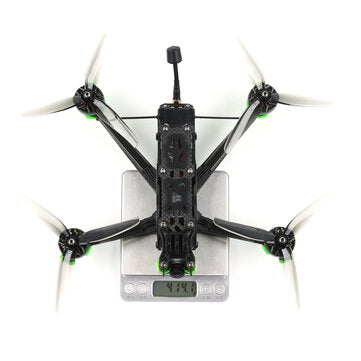

Weight: 412g (without battery and GoPro mount)
FC // BLITZ Mini F7 Flight Controller (
MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5x27 mm
Weight: 5g
ESC // BLITZ Mini E55 ESC ( Link)
Supports 2-6S lipo input
MCU：G071
Constant: 55 Amps
Burst: 60 Amps
Current sensor: Yes
BEC: No
Current rate: 100
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G1
Dimension: 35*42mm
Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Package included：
1 x Nazgul5 Evoque F5 HD FPV Racing Drone (Deadcat)
4 x Nazgul F5 Prop
2 sets of Battery Pads
4 x Battery straps
1 x Screws bag
