DJI MINI 3 10KM FPV 38/51-mins Extended Battery Life with 1/1.3
DJI MINI 3 10KM FPV 38/51-mins Extended Battery Life with 1/1.3" 4K HDR Video True Vertical Shooting 249g RC Drone Quadcopter RTF
Specifications:
Aircraft |
Takeoff Weight |
248g (With the Standard Battery) About 290g (With the Intelligent Flight Battery Plus) |
| Dimensions |

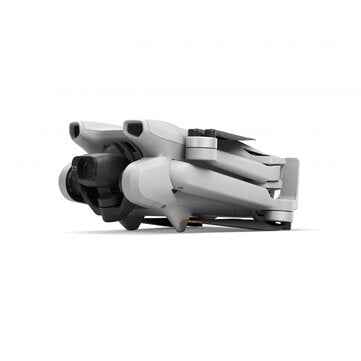

Folded (without propellers): 148×90×62 mm (L×W×H) Unfolded (with propellers): 251×362×72 mm (L×W×H) |
|
| Diagonal Distance (propellers excluded) | 247 mm | |
| Max Ascension Speed | 5 m/s | |
| Max Descent Speed | 3.5 m/s |
|
Max Horizontal Speed(near sea level, no wind) |
16 m/s |
|
| Max Takeoff Altitude |
With Intelligent Flight Battery: 4000 m With Intelligent Flight Battery Plus: 3000 m |
|
| Max Flying Time |
38 mins (with Intelligent Flight Battery and measured while flying at 21.6 kph in windless conditions) 51 mins (with Intelligent Flight Battery Plus and measured while flying at 21.6 kph in windless conditions). Only available in select countries. |
|
| Max Hovering Time |
33 mins (with Intelligent Flight Battery, no wind) 44 mins (with Intelligent Flight Battery Plus, no wind) |
|
| Max Flying Distance |
18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions) 25 km (with Intelligent Flight Battery Plus and measured while flying at 43.2 kph in windless conditions) |
|
| Max Wind Speed Resistance | 10.7 m/s (Level 5) | |
| Max Tilt Angle | 40° |
|
| Internal Storage | N/A |
|
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
|
| GNSS | GPS GLONASS Galileo |
|
| Hover Accuracy Range | Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GNSS Positioning) Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GNSS positioning) |
|
Gimbal |
Mechanical Range | Tilt: -135° to 80° Roll: -135° to 45° Pan: -30° to 30° |
| Controllable Range |
Tilt: -90° to 60° Roll: -90° or 0° |
|
| Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) | |
| Max Control Speed (tilt) | 100°/s | |
| Angular Vibration Range | ±0.01° | |
Sensing System |
Sensing Type |
Downward Vision System |
| Downward |
Precise Hovering Range: 0.5-10 m |
|
| Operating Environment |
Downward: Diffuse reflective surfaces with a clear pattern and reflectivity > 20% (such as walls, trees, or people) Adequate lighting (lux > 15, normal indoor lighting conditions) |
|
Camera |
Image Sensor | 1/1.3-inch CMOS Effective Pixels: 12 MP |
| Lens | FOV: 82.1° Format Equivalent: 24 mm Aperture: f/1.7 Focus Range: 1 m to ∞ |
|
| ISO Range |
Video: Photo: |
|
| Shutter Speed | Electronic Shutter: 2-1/8000s | |
| Max Image Size | 4000×3000 |
|
| Still Photography Modes |
Single Shot: 12 MP Timed: 12 MP JPEG: 2/3/5/7/10/15/20/30/60 s JPEG RAW: 5/7/10/15/20/30/60 s Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step Panorama: Sphere, 180°, Wide Angle HDR: The Single Shot mode supports outputting HDR images. |
|
| Video Resolution |
4K: 3840×2160@24/25/30fps 2.7K: 2720×1530@24/25/30/48/50/60fps FHD: 1920×1080@24/25/30/48/50/60fps HDR: Recording with the 24/25/30fps frame rate supports outputting HDR images |
|
| Max Video Bitrate | 100 Mbps | |
| Digital Zoom |
4K: 2x 2.7K: 3x FHD: 4x |
|
| QuickShot Modes |
Dronie, Hellix, Rocket, Circle, and Boomerrang |
|
| Supported File Systems | FAT32 (≤32 GB) exFAT (>32 GB) |
|
| Color Mode |
Normal |
|
| Photo Format | JPEG/DNG (RAW) | |
| Video Format | MP4 (H.264) | |
Video Transmission |
Video Transmission System |
DJI O2 |
| Live View Quality |
Remote Controller: 720p/30fps |
|
| Operation Frequency |
2.400-2.4835 GHz 5.725-5.850 GHz |
|
| Transmitter Power (EIRP) |
2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) |
|
|
Max Transmission Distance (free of interference) |
FCC: 10 km CE: 6 km SRRC: 6 km MIC: 6 km |
|
| Lowest Latency |
Approx. 200 ms (Depending on the actual environment and mobile device.) |
|
|
Max Transmission Distance (with interference) |
Strong Interference: urban landscape, approx. 1.5-3 km Medium Interference: suburban landscape, approx. 3-6 km Low Interference: suburb/seaside, approx. 6-10 km |
|
| Max Download Speed |
DJI O2: 5.5 MB/s (with DJI RC-N1 Remote Controller) 5.5 MB/s (with DJI RC) Wi-Fi 5: 25 MB/s |
|
| Antennas |
2 antennas, 1T2R |
|
Charging Hub |
Compatible DJI Charger |
DJI 30W USB-C Charger or other USB Power Delivery Chargers (30 W) |
| Compatible DJI Batteries |
DJI Mini 3 Pro Intelligent Flight Battery, DJI Mini 3 Pro Intelligent Flight Battery Plus |
|
| Input |
5 V, 3 A 9 V, 3 A 12 V, 3 A |
|
| Output (USB) | Max Voltage: 5 V, Max Current: 2 A | |
| Charging Type | Three batteries being charged in seequence | |
| APP | Name | DJI Fly |
| Required Operating System | iOS v10.0 or later Android v6.0 or later | |
| Supported SD Cards | Supported SD Cards |
UHS-I Speed Class 3 or above is required. A list of reccomended microSD cards can be found below |
Battery:
| Item |
Intelligent Flight Battery |
Intelligent Flight Battery Plus |
| Capacity |
2453 mAh |
3850 mAh |
| Weight |
Approx. 80.5 g |
Approx. 121 g |
| Voltage |
7.38 V |
7.38 V |
| Charging Voltage Limit |
8.5 V |
8.5 V |
| Battery Type |
Li-ion |
Li-ion |
| Energy |
18.1 Wh |
28.4 Wh |
| Max Charging Power |
37 W |
58 W |
| Charging Time |
64 mins (with DJI 30W USB-C Charger) |
101 mins (with DJI 30W USB-C Charger) |
| Charging Temperature Range |
5° to 40° C (41° to 104° F) |
5° to 40° C (41° to 104° F) |
| Recommended Charger |
DJI 30W USB-C Charger or other USB Power Delivery Chargers |
DJI 30W USB-C Charger or other USB Power Delivery Chargers |
Remote Controller:
| Item |
DJI RC-N1 |
DJI RC |
| Model |
RC-N1 |
RM330 |
| Video Transmission System |
DJI O3 |
DJI O3 |
| Transmitter Power (EIRP) |
2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE) |
2.400-2.4835 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE) |
| Storage Capacity |
DJI RC's storage capacity can be increased by using a microSD card. Users can store images and videos on the card and export them to a computer or other devices. |
|
| Video Output Port |
N/A |
|
| Max Battery Life |
6 hrs (without charging any mobile device) 4 hrs (when charging a mobile device) |
Approx. 4 hours |
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
-10° to 40° C (14° to 104° F) |
| Max Supported Mobile Device Size |
Length: 180 mm, Width: 86 mm, Height: 10 mm |
|
| Supported Port Types |
Lighting, Micro-USB (Type-B), USB-C |
|
| Supported SD Cards |
UHS-I Speed Class 3 or above is required. A list of recommended microSD cards can be found below. |
|
| Wi-Fi Protocol |
802.11 a/b/g/n |
|
| Wi-Fi Transmitter Power (EIRP) |
2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC) |
|
| Bluetooth Protocol |
Bluetooth 4.2 |
|
| Bluetooth Transmitter Power (EIRP) |
2.400-2.4835 GHz: <10 dBm |
Features:
- Under 249 g
- Extended Battery Life
- 4K HDR Video
- True Vertical Shooting
- Intelligent Features
- 38kph (Level 5) Wind Resistance
- Beginner-Friendly, Easy-To-Fly, and Easy-To-Use

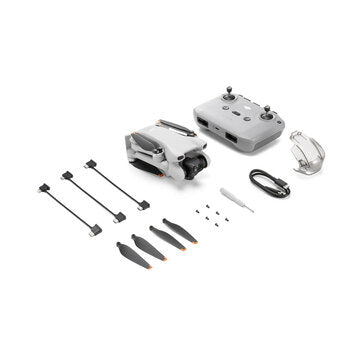

Package Included:

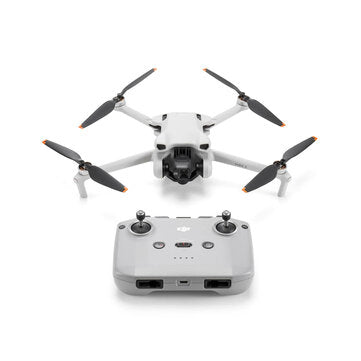

MINI 3 (RC-N1)
1 x DJI MINI 3
1 x DJI RC-N1 Remote Controller
1 x Intelligent Flight Battery
1 x Pair of Spare Propellers
3 x RC Cable (USB/USB-C/Lighting/)
1 x Type-C PD Cable
1 x Gimbal Protector
6 x Spare Screw
1 x Screwdriver
MINI 3 (DJI RC)
1 x DJI MINI 3
1 x DJI RC
1 x Intelligent Flight Battery
1 x Pair of Spare Propellers
1 x Type-C PD Cable
1 x Gimbal Protector
6 x Spare Screw
1 x Screwdriver
